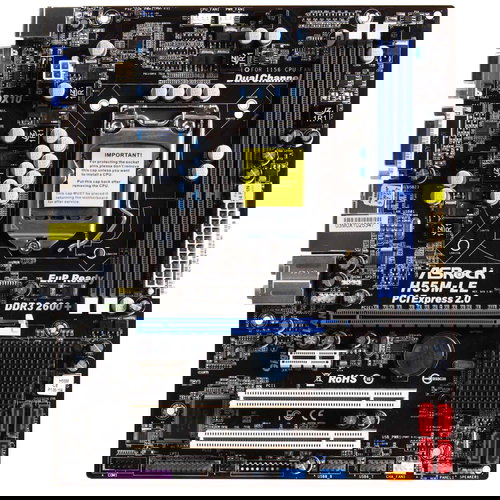

ASROCK H55M-LE

Note:board has full integrated graphics card, for use onboard connectors is necessary to use Intel integrated graphics card containing the Intel HD Graphics.

Reliable motherboard ATX format for modern Intel Core i3, i5, i7 and Pentium G6950 supports Intel Turbo Boost and Hyper-Threading.Two slots can accommodate up to 8 GB of DDR3 memory at up to 2600 MHz.To extend prepared two PCI slots, one PCI Express x16 and one PCI Express x1.For hard disks are prepared four SATA II controller.The board contains an integrated graphics card, but it has VGA and DVI output for the case of fitting a processor that has the necessary hardware.Integrated network card or sound, of course, missing.The board is ready for operation a computer with Windows XP, Vista and seventh

Specifications:

Processor:
Base:LGA 1156
Supported models:Intel Core i3, i5 and i7, Pentium G6950
Support Intel Turbo Boost, Hyper-Threading Technology, untied Overclocking Technology, EM64T

Chipset:
Intel's H55

Memory:
2 x DDR3 memory with a frequency of 2600 + (OC)/2133 (OC)/1866 (OC)/1600/1333/1066 MHz
Up to 8 GB non-ECC, un-buffered memory, support Intel Extreme Memory Profile (XMP)

Expansion Slots:
1 x PCI Express 2nd0 x16t
1 x PCI Express 2nd0 x1 (2nd5 GT/s)
2 x PCI slots

Hard disk controllers:
4 x SATAII third0 Gb/s

Graphic card:
The motherboard supports processor fitted with the integrated graphics chip!

Sound card:
Integrated VIA VT1718S 7thA

Network card:
Integrated Realtek LAN RTL8111DL 10/100/1000 Mb/s

Interface:
6 x USB 20
1 x PS/2
1 x VGA
1 x DVI
1 x RJ-45
1 x 71 audio panel
1 x VGA
1 x DVI

BIOS:
SMBIOS secondThird1, first ACPI1, - CPU, DRAM, VTT, PCH, CPU PLL

Power:
24pinový ATX
4-pin 12V connector

Dimensions:
Micro ATX:24.4 cm x 20.3 cm

Supported operating systems:
Microsoft Windows 7/7 64-bit/Vista/Vista 64-bit/XP/XP 64-bit

Included accessories:
Software CD (drivers, utilities, antivirus trial version, the AS Rock Software Suite)
Documentation
I/O Shield
