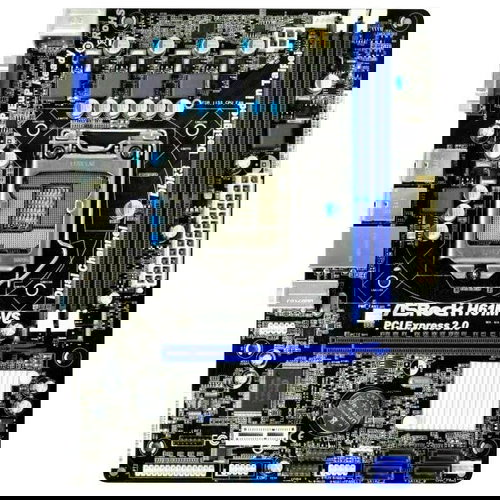

ASROCK H61M-VS

Available motherboard ideal for a cheap, yet powerful enough to stop all routine activities.Format boards fall into the category of Micro-ATX is reduced format ideal for a compact station in the cabinet or Mini Midi Tower.The board is designed exclusively for use with the new generation of Intel Sandy Bridge, whose advantage is the integration of GPU HD 2000/3000, which you can share up to 1759 megabytes of system memory, graphics library supports Microsoft DirectX 101, Shader Model 4thOpenGL and a third0, so that you will enjoy watching HD videos and play undemanding games without using a separate graphics card.Graphic output is done in the form of an analog D-sub connector.

The board features a unique technology ASRock XFast USB, which promises up to 376% faster data transfer via USB 20 interface compared to motherboards without this technology to bring the world's fastest USB 20 read and write data.A unique feature of this model is also calledC.C.O.(Combo Cooler Option) which will please you if you have an old CPU heatsink compatible with socket LGA 775 and LGA 1156 and still do not want him to say goodbye.C.C.O.is allowing its use in the socket LGA 1155, which this board has.

Users who revel in the monitoring system and its possibilities for growth performance, will appreciate the special software ASRock Extreme Tuning Utility.AXTU is executed in a user-friendly interface in one place and provide hardware monitoring functions, speed, fan speed, temperatures and the possibility of overclocking.It is worth mentioning EFI BIOS unprecedented graphical user interface that can handle the new mouse movements.EFI bios also breaks the boundary of the operating system boot disks smaller than 2 TB.Now you can start the OS from a single large disk without fractionation capacity of up to 3 TB!

The board allows the installation of up to 2 modules of DDR3 RAM, whose frequency can be 1066 or 1333 MHz, which ensures full use of the integrated memory controller in compatible processors.The support of two-channel connection increasing bandwidth and thus the entire system.Hard drives and optical drives you can connect from one of a total of 4 internal SATA II connectors.The chipset is based on 3revision (B3 stepping) for which has already been fixed on the SATA controllers, so there is no failure.Further expansion is possible via PCI Express add-on second0, finds that his application for the installation of suchdiscrete graphics card, an internal TV tuner, Wi-Fi card or USB third0 controller.

Specifications:

Supported processors:
Series:Intel Sandy Bridge
Base:LGA 1155

Chipset:
Intel's H61

Memory:
Type:DDR3
Slot:2x DIMM
Frequency:1066/1333 MHz
Connection mode:Dual-channel
Max.capacity:16 gigabytes

Video:
According manned processor (Intel HD Graphics 2000/3000)
Max.shared memory:1759 megabytes
Max.resolution D-sub:2048 x 1536 @ 75 Hz

Audio:
Via VT1705
5th1 HD

LAN:
Atheros AR8152
10/100 Mbit/s

Expansion Slots:
1x PCI Express 2nd0 x16
1x PCI Express 2nd0 x1

Internal interface:
4x SATA (3 Gbit/s)
2x USB 20 connector (4 additional USB 2Ports 0)
1 x LPT connector
1 x COM connector

External interfaces:
1x D-sub
2x PS/2 (mouse, keyboard)
6x USB 20
1x RJ-45
3x Audio jack

Power:
1x ATX 24pinový
1x 4-pin ATX 12V connector

Design:
Micro-ATX

Dimensions:
22.6 x 17.3 cm

Included accessories:
Installation CD
User Manual
Anti-virus software (trial version)
Software CyberLink DVD Suite (trial version)
Creative's Sound Blaster X-Fi MB (trial version)
Rear Panel
2x SATA cable
