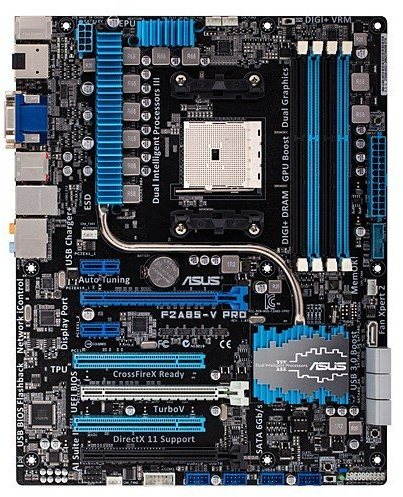

ASUS F2A85-V PRO
Don't like the alternatives? Choose from the full product list
ASUS F2A85-V PRO
Richly equipped motherboard for AMD new generation APU under the name Trinity. It has the highest chipset for socket FM2 - AMD A85X provide a wide range of additional expansion cards through a 6 PCI Express slots, ensuring super-fast data through SATA III, eSATA III and USB 3.0 with USB 3.0 Boost includes a wide range of ASUS specialties. The board manages technology Dual Intelligent Processors 3 with precise digital power New DIGI + Power Control . This power supply uses two digital voltage controllers. One controller is used for very accurate power APU, another takes care of the DRAM. With this enhancement, you will always have confidence peak power tuning. This will result in greater efficiency, stability and performance.
In case of selection boards for HTPC'll love the Remote GO! . This will allow linking computer with your tablet, smartphone, television, and possibly with other DLNA compatible devices. Streaming media will be provided in a few easy steps and you'll have around during a time multimedia home entertainment center!
The advantage of the board is also a major influence on silent the whole assembly. It supports the F an Xpert 2 used to optimize the speed of the fans. Take advantage will also function to control network bandwidth Network iControl or USB Charger + for up to 3 times faster charging of connected mobile devices.
Specifications:
Supported Processors:
Series: AMD A/Athlon
Socket: AMD FM2
Chipset
AMD A85X (Hudson D4)
Memory:
Type: DDR3
Slot: 4x DIMM
Frequency: 1066/1333/1600/1866 MHz
Mode: Dual-channel
Max. Capacity: 64 gigabytes
Expansion Slots:
3x PCI Express 2.0 x16 (x16 or 2 x8)
1x PCI Express 2.0 x16 (x4)
2x PCI Express 2.0 x1
2x PCI
Video:
The integrated graphics chip in AMD A Series (Trinity)
Support for AMD Dual Graphics
Support for AMD CrossFireX (3-way)
Support LucidLogix Virtu MVP
Audio:
Realtek ALC892
7.1 HD
LAN:
Realtek 8111F
10/100/1000 Mbit/s
Internal interface:
7x SATA III (6 Gbit/s)
1x USB 3.0
4x USB 2.0
1x COM
1x S/PDIF output
RAID Support:
RAID 0/1/5/10, JBOD
External interfaces:
1x HDMI
1x DisplayPort
1x DVI
1x D-sub
1x eSATA III
2x USB 2.0
4x USB 3.0
1x RJ-45
6x audio jack
1x optical S/PDIF output
1x PS/2 (keyboard/mouse)
Power:
1x 24pin EATX
1x 8pin ATX 12 V
Format:
ATX
Dimensions:
30.5 x 24.4 cm
Included accessories:
CD with drivers and utilities
Anti-virus software (OEM version)
User Manual
4x SATA III cable
I/O back cover
Specifications
Format & functions
Memory
Advanced parameters
Connectors
