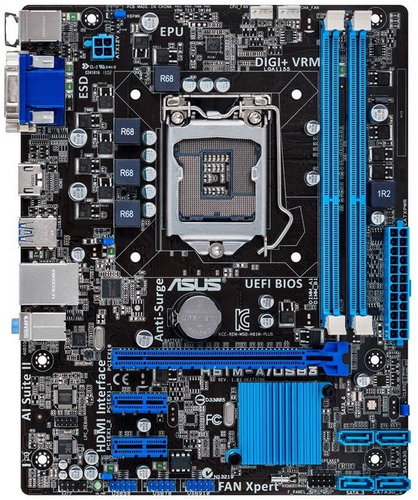

ASUS H61M-A/USB3
Originally processed graphical UEFI BIOS, which can also be operated mice offers plenty of configuration options, whether it is a priority for booting the device or testing RAM. This motherboard ASUS stands fully digital power supply DIGI + VRM and functions for managing bandwidth network connection Network iControl . U plate ensures compatibility with the new operating system Microsoft Windows 8th
Specifications:
Supported Processors:
2nd and 3rd generation processors Intel Pentium/Celeron
Socket: LGA 1155
Chipset
Intel H61
Memory:
Type: DDR3
Slot 2 x DIMM
Connection mode: Dual-channel
Frequency: 2200 (OC)/2133 (OC)/2000 (OC)/1866 (OC)/1600/1333/1066 MHz
Max. Capacity: 16 GB
Expansion Slots:
1 x PCI Express 3.0/2.0 x16
2 x PCI Express 2.0 x1
Video:
Support HDMI with max resolution 1920 x 1200 @ 60 Hz
Supports DVI with max resolution 1920 x 1200 @ 60 Hz
Support RGB with max resolution 2048 x 1536 @ 75 Hz
Up to 1024 MB of shared memory
Audio:
Realtek ALC887
8 Channel HD
LAN:
Realtek 8111F
1 x 10/100/1000 Mbit/s
Interface back panel:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x HDMI
1 x DVI
1 x D-Sub
Port 1 x LAN (RJ45)
2 x USB 3.0
2 x USB 2.0
3 x audio jack
Internal interface:
3 x USB 2.0
4 x SATA 3Gb/s
1 x Front panel audio connector (AAFP)
1 x internal speaker connector
1 x front panel connector
Power:
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
Format:
micro-ATX
Dimensions:
22.6 x 18 cm
Included accessories:
User Guide
I/O shield
2 x SATA II cable
Specifications
Format & functions
Memory
Advanced parameters
Connectors
