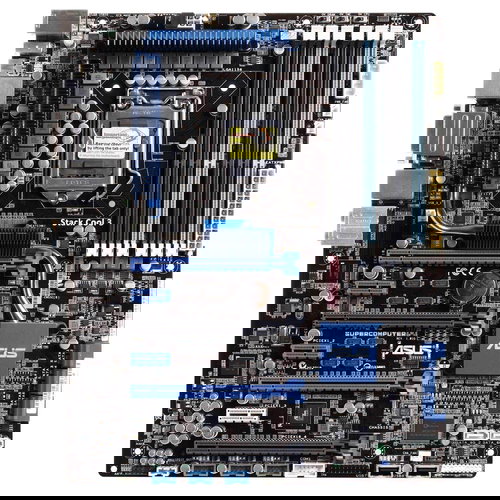

ASUS P7F7-E WS Supercomputer
Modern high performance motherboards from ASUS offering great performance. Flexible motherboard for dual core and quad-core processors. You can go just six slots supporting up to 16 GB of memory clocked at 2000 MHz maximum frequency. For graphics cards are prepared four slots PCI Express x16. Hard drives can be connected using a standard six Serial ATA connectors. Due to the presence čytř ports with support for PCI Express x16 is certainly possible to join multiple video cards. The user can reach the standards by supporting NVIDIA SLI Quad-GPU and quad-GPU ATI CrossFireX on Nvidia and ATI cards. What is certainly delight even two powered eSATA connectors for quick connection to external drives. Part of the plate is also a sound card and two network cards. Pleasant bonus is the presence of III SATA controllers on the board and the USB 3.0 controller on the expansion card. Integrated DVI interface supports Blu-ray playback at full HD resolution.
Parameters and specifications:
Supported Processors:
Intel Core i7/Core i5/Core i3
Slot: 1156
Chipset:
Intel 3450
Memory:
6 slots for DDR3 memory modules, up to 16 gigabytes
Support Dual Channel
DDR3 2000 (OC)/1333/1066 MHz
Support ECC
Expansion Slots:
4x PCI Express x16 2.0
3x PCI Express x1
Disk controller:
2x eSATA
6 x Serial ATA III with RAID 0, 1, 5 and 10
Audio:
9.1 HD Audio
Support for S/PDIF
Video Card:
None
Network card:
2x Gigabit LAN 10/100/1000 Mbit/s
Inputs and outputs:
1x PS/2 keyboard
1x PS/2 mouse
4x USB 2.0
1x DVI
2x USB 3.0
1x RJ-45
1x Audio Desetikanálové
Board Size:
305 x 244 mm, ATX
