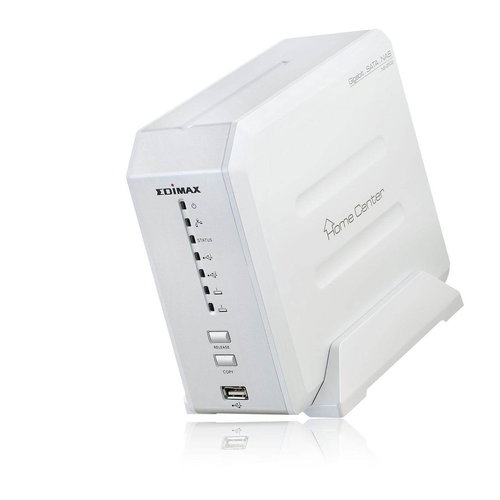

Edimax NAS NS-2502

High Speed NAS Gigabit Ethernet server bearing designed for sharing data in networks of small firms, or massive cramping and users accessing data on a server.This is an independent station that supports FTP/HTTP/BitTorrent P2P protocols.Downloading any files without the need to turn on your computer.You can also check BitTorrent downloads in web interface.Built-in Media Server is used for sharing video and audio files to UPnP and DLNA adapters and playback over a network.Also included is a iTunes server to download from iTunes and sharing with other computers or compatible player online.

On a practical device are two buttons, one for the release of external USB devices and one for copying data to your hard disk staffed.There are available now two USB ports for flash drives or external hard drives.Security is a provision by user (user) and group (group) rights with three levels of security.Without access, read only and read/write.Security components is hierarchically inherited.

Parameters and specifications:

Hardware:
1x 10/100/1000 Mbps Ethernet LAN Port
2x USB Port
2x 3.5 "Serial ATA hard drive socket for
LED:Power, LAN, Status, 2x USB, 2x HDD
Release button and copy
Power:DC 12 V, 45A
Operating temperature:0 ~ 85 ° C
Humidity:10 ~ 90% (non-condensing)
Dimensions:165 x 190 x 77 mm

Memory:
8 megabytes NOR Flash
64 MB SDRAM
External Hard Drive:Supports Serial ATA, Serial ATA II
Maximum capacity1 TB for the position

Filesystem:
CIFS, NTFS, FAT16, FAT32, EXT2, EXT3
Max.filesize:FAT16 2GB, FAT32 4 GB, EXT2/3> 4 GB

Position:
FTP and Samba server
Supports the USB mass storage and sharing
Sharing files via FTP or network
Supports FTP/HTTP download agent
Supports P2P (BitTorrent) download
Supports UPnP/DLNA Media Server, iTunes Server

Management:
Supports Workgroup settings
Supports the management of user accounts
It supports Samba, FTP share permission management
Supports HDD Partition tool (for partitioning)
Supports web configuration
Upgrade firmware

Configuration:
Partitioning and format
USB Copy
Configuration Backup and Restore
Reset System

Security:
User and Group level security (no access, read only, read/write)
Security Settings folder with parental inheritance
Administrator username/password secure connection for HTML configuration tool

Data Sharing:
Maximum number of user accounts:32
Maximum number of groups:12
Maximum number of shared components:100
Maximum number of connections at the same time:32

Certification:
