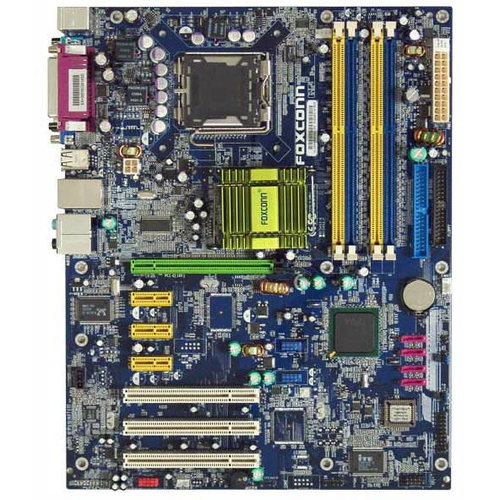

FOXCONN 915A03-G-8KS, i915G/ICH6, int.VGA + PCIe x16, DualChannel DDR400, SATA, USB2.0, GLAN, sc775

Excellent motherboard with čipsetem Intel 915th / ICH6, designed for Intel Pentium 4 processors and Celeron D to 775th cap SocketIt has dvoukanálovým memory controller with four slots for up to4 GB of memory type DDR.Vybavena is integrated gigabit network card, 8-channel sound card and video card Intel Graphics Media Accelerator 900 with up to 128 MB shared memory.Up to six hard drives can be connected to the controller with one channel IDE ports and four Serial ATA.For further expansion offers a PCI Express x16, three PCI Express x1 and three PCI slots.To connect external devices is available up to eight USB ports, serial and parallel.

The parameters and specifications:

Čipset:
Intel 915th + ICH6

CPU:
Socket 775, Intel Pentium 4
Support for Intel processors Prescott and Celeron D
Support for Hyper-Threading
FSB 533 / 800 MHz

Memories:
Dual controller DDR 266 / 333 / 400
4 slots, max4 GB unbuffered

Controllers:
1 x ATA/100
4 x SATA/150

Video card:
Intel Graphics Media Accelerator 900
Up to 128 MB shared memory

Sound card:
8-channel High Definition (Realtek)

Network card:
Gigabit Ethernet 10 / 100 / 1000 Mbit / s (Realtek)

Extension slots:
1 x PCI Express x16
3 x PCI Express x1
3 x PCI

Inputs and outputs:
2 x PS / 2
1 x RJ-45
4 x USB 2nd0
1 x Line-in / line-out / mic (audio)
1 x parallel port (SPP / ECP / EPP)
1 x serial port (16550-compatible UART)
1 x S / PDIF
1 x VGA

Dimensions:
Format ATX
305 x 245 mm

Warning:Slot Socket 775 requires a professional assembly!The damage caused by improper treatment does not guarantee.We recommend that you get a computer to compile our service department.
