GIGABYTE B550M GAMING

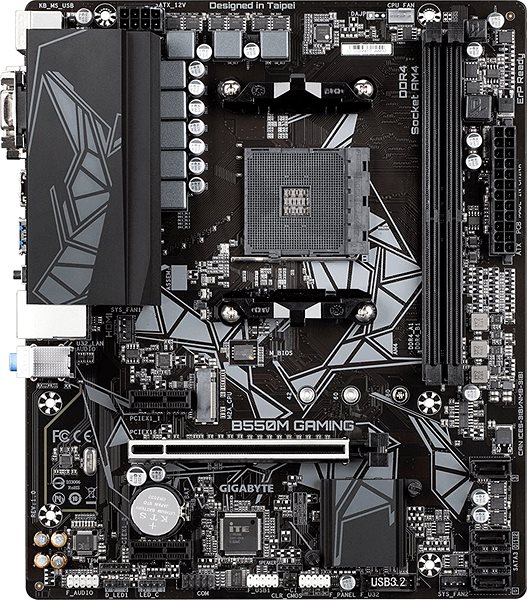

This GIGABYTE motherboard is based on the AMD B550 chipset and has the AMD AM4 socket for the processor. And, of course, it has a sound card made for 8 channels. It combines modest dimensions with an adequate amount of connectors to create an ideal home PC. If you want to build a PC with this motherboard, it is neccessary to use a compatible mATX (Micro ATX) format PC case.
GIGABYTE B550M GAMING Motherboard Key Features
- AMD AM4 socket and the AMD B550 chipset
- GIGABYTE B550M GAMING format: mATX (Micro ATX)
- Integrated sound card for 8 channels
- DDR4 computer RAM type with DIMM design
- The motherboard can hold 2 × dual-channel memory modules
GIGABYTE B550M GAMING Motherboard Connectivity
RAM is absolutely crucial, so this GIGABYTE motherboard has a total of 2 RAM slots. You can pair it with DDR4 type DIMM memory . You can hook them up in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 5100 MHz.
GIGABYTE B550M GAMING Connectors
This motherboard supports graphics cards with a PCI Express 16x slot. The internal interface also includes a total of 1 popular M.2 connectors.
- The motherboard has an integrated Realtek ALC887 sound card
- Supported external communication interfaces: DVI, HDMI, Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1 and VGA (D-Sub)
- Internal interfaces: ARGB LED Header, COM header, M2 Socket, RGB LED Header, Serial ATA III, TPM header, USB 2.0 header and USB 3.2 Gen 1 header
- The M.2 interface will be very welcome if you are planning to install modern SSDs, where SATA connection is just too slow
- Maximum supported RAM clock speed: 5100 MHz
- SATA III: 4 ×
