GIGABYTE H610M H V2

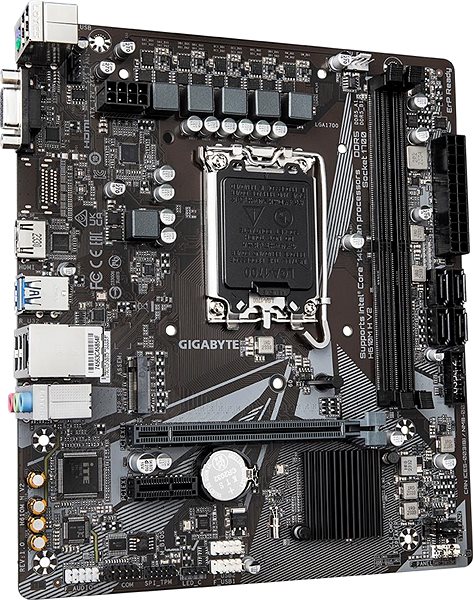

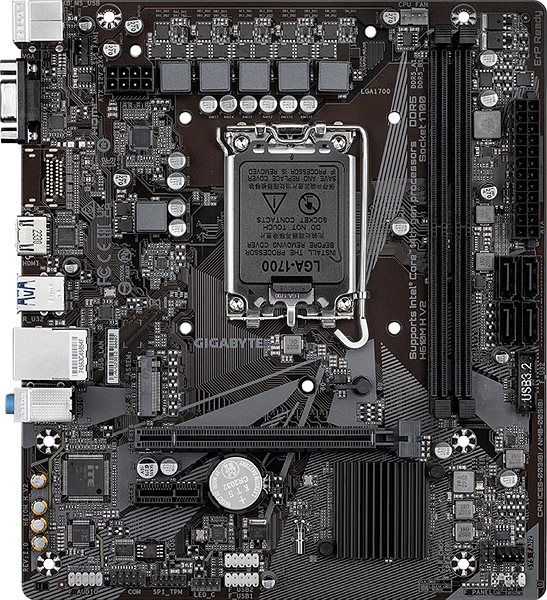

This GIGABYTE motherboard is based on the Intel H610 chipset and has the Intel 1700 socket to accommodate the CPU. As you would expect,, it has a sound card which will handle 8,0 channels. It skilfully combines compact dimensions with an adequate number of adaptors for the optimal home computer setup. If you want to build a PC with this model, you'll need a compatible mATX (Micro ATX) format PC case.
GIGABYTE H610M H V2 Motherboard Key Features
- Intel 1700 socket and uses Intel H610 chipset
- GIGABYTE H610M H V2 size: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 2 × dual-channel memory modules
GIGABYTE H610M H V2 Motherboard Connectivity
Computer RAM is something you obviously can't do without , so this GIGABYTE motherboard has 2 RAM slots. You can make use of DDR5 type DIMM RAM. You can connect them in dual-channel mode. The motherboard supports models with a clock speed of up to 5600 MHz.
GIGABYTE H610M H V2 Connectors
The motherboard is made for graphics cards with a PCI Express 16x slot. The internal interface also includes a total of 1 popular M.2 connectors.

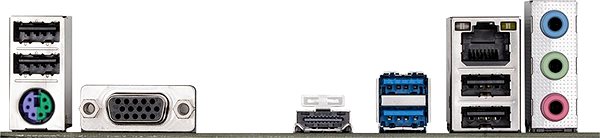

- Supported external communication interfaces: Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, VGA (D-Sub) and HDMI 2.1
- Supported internal interfaces: COM header, RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB 2.0 bracket, M.2 PCIe 3.0, PCIe 4.0 x16 and Serial ATA III
- Maximum supported RAM module clock speed: 5600 MHz
- SATA III: 4 ×
Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
