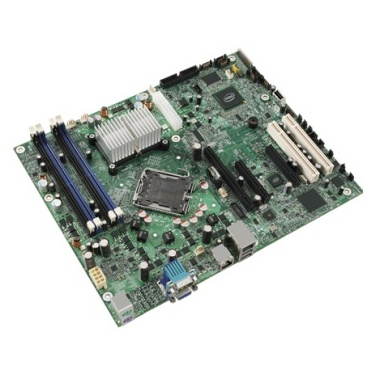

Intel S3210SHLX Snow Hill
Intel S3210SHLX Snow Hill
Excellent motherboard from Intel with the designation S3210SHLX Snow Hill, which is designed primarily for server use.It supports the latest processors on the market such as the Intel Core 2 Quad, Intel Core 2 Duo, Intel Xeon series 3000thUses chipset Intel 3210 server with PXH-V technology, a system bus runs at a frequency of 800/1066/1333 MHz.The board offers two-involvement of DDR2 memory modules in four slots.Supported frequencies are 667/800 MHz memory, with a maximum capacity of up to 8 GB.The board will allow for up to 6-SATA drives.The motherboard is an integrated graphics card.There are also two Gigabit Ethernet port.Plate technology supports RAID 0, 1, 5 and 10
Parameters and specifications:
CPU:
Intel Core 2 Quad
Intel Core 2 Duo
Intel Xeon 3000 series
Chipset:
Intel 3210 server with PXH-V
System Bus:
800/1066/1333 MHz
Memory:
Dual involvement
4x DIMM DDR2 slot
frequency of 667/800 MHz
ECC/non-ECC DIMMs
Max.:8 GB
Video Card:
integrated
Expansion Slots:
1x PCI-Express x8 (x16 slot)
1x PCI-Express x8 (x8 slot)
2x PCI-X 64-bit/133 MHz
1x PCI 32-bit/33 MHz
Interface:
6x Serial ATA 3rd0 GB/s
2x Intel Gigabit Ethernet
Support:
Intel System Management Software 2nd0
RAID Support:RAID 0,1,5,10
