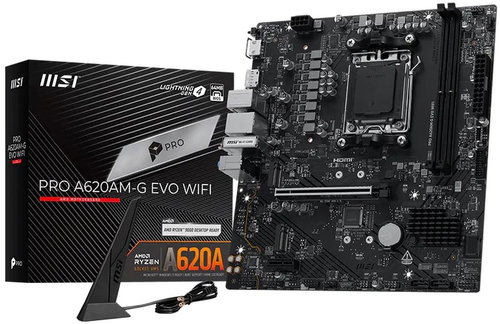

MSI PRO A620AM-G EVO WIFI
MSI PRO A620AM-G EVO WIFI
The MSI PRO A620AM-G EVO WIFI motherboard is a reliable foundation for builds with AMD Ryzen 7000, 8000, and 9000 series processors for the AM5 socket. This mATX board integrates modern technologies for efficient professional and home use. It supports DDR5 memory which, combined with Memory Boost technology and SMT soldered slots, achieves high frequencies. For fast data access, the board provides two M.2 Gen4 slots. Connectivity includes fast 2.5G LAN as well as wireless connection via Wi-Fi 6E and Bluetooth 5.3. This AM5 DDR5 motherboard with an MSI A620 chipset offers a balanced set of features for building a powerful and stable computer.
AMD A620
Chipset
AMD AM5
Socket
mATX
Form factor
DDR5
Memory type
2×
Number of RAM slotsKey features of the MSI PRO A620AM-G EVO WIFI motherboard
- mATX form factor with AMD A620 chipset and AM5 socket
- Two DDR5 slots supporting frequencies up to 7200MHz in overclocking mode
- Expansion slots include PCIe 4.0 x16 and PCIe 3.0 x1
- Two M.2 Gen4 slots and four SATA III 6Gb/s ports for data storage
- Network equipment includes 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3
- Power system uses Core Boost technology
- Special features include EZ Debug LED and Flash BIOS Button
Power and expandability
Core Boost technology combines an optimised layout and digital power design for precise power delivery to multi-core processors. This solution supports stable operation even under heavy load. For the graphics card, the board has a primary PCIe 4.0 x16 slot, which is reinforced with Steel Armor technology for protection against mechanical damage. You can install other add-on cards, such as sound or network cards, into the PCIe 3.0 x1 slot.
DDR5 memory and fast storage
Two SMT slots for DDR5 memory support frequencies of up to 7200MHz in overclocking mode and AMD EXPO profiles for easy setup. The SMT soldering process reduces error rates and electromagnetic interference. For data storage, the board includes two M.2 slots with a Lightning Gen 4 interface, which transfer data at speeds of up to 64Gb/s. The board also has four SATA III ports with a speed of 6Gb/s for connecting hard drives or SSDs.
Modern connectivity and diagnostics
For network connection, the board uses a 2.5G LAN port, which is complemented by a wireless module with support for Wi-Fi 6E and Bluetooth 5.3. The connector selection on the rear panel includes seven USB 5Gbps ports, one of which is Type-C, and six USB 2.0 ports. For easy diagnostics and maintenance, the board uses features like the EZ Debug LED, which indicates problems with key components, and the Flash BIOS Button for updating the system BIOS without a CPU installed.
Cooling and audio output
A passive heatsink dissipates heat from the chipset. Temperatures throughout the build are regulated by Frozr AI Cooling software technology, which automatically adjusts system fan speeds based on CPU and graphics card temperatures. Audio output is handled by the Realtek ALC897 chip with Audio Boost technology, which uses separate circuits for the left and right channels and delivers 8-channel (7.1) HD sound.
Port selection
Storage
- SATA III ports: 4
- M.2 ports: 2
- M.2 Slot: 2× PCIe 4.0 x4
- Features: RAID 0, RAID 1, RAID 10
USB ports
- Rear USB 2.0: 2
- Internal USB 2.0: 4
- Rear USB 5Gbps Type-A: 4
- Internal USB 5Gbps Type-A: 2
- Internal USB 5Gbps Type-C: 1
Graphics
- HDMI 2.1
- DisplayPort 1.4
- Graphics outputs: HDMI, DisplayPort
Sound
- Number of channels: 7.1
- Rear connectors: 3× 3.5mm Jack
Other
- Rear: Flash BIOS button, CMOS button, RJ-45 (LAN) 2.5Gbps, Wi-Fi / Bluetooth
- Internal: PCIe 4.0 x16, PCIe 3.0 x1, RGB LED Header, TPM header, COM header, 3× Addressable RGB LED, Chassis Intrusion
- Power: 24pin ATX_PWR, 8pin CPU_PWR
- Cooling: 1× CPU fan header, 2× system fan headers
Choosing a motherboard
When choosing a motherboard (also known as a mainboard), it is important to pay particular attention to the motherboard's socket type, format, and chipset. These are among the most crucial parameters, ensuring the board's compatibility with the processor, expansion cards, and other components. The specific socket determines your choice of processor, while the remaining connectors will dictate the other components you need for your future computer.Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
Micro-Star International Co Ltd. C/O MSI Computer Europe BV, Science Park Eindhoven 5706, 5692 ER, Son, Netherlands, [email protected]
The Taiwanese company MSI (Micro-Star International) has earned a solid place in the world of IT, mainly producing motherboards for desktop computers. However, it also produces high quality graphics cards, barebone computers, notebook computers, networking products, servers, and many other computer components. MSI products support the latest technologies and provide the performance necessary for all applications. Recently, the company has begun making a name for itself in the growing segment of gaming notebooks.
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
