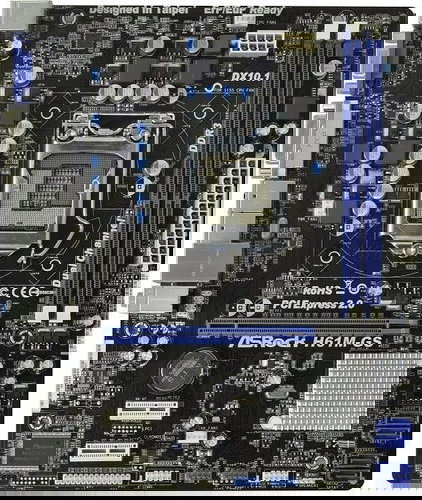

ASROCK H61M-GS

Affordable basic micro ATX format motherboard from ASRock. It is designed for the Intel family of processors Ivy Bridge and Sandy Bridge for socket 1155 . The board is equipped with a chipset Intel H61 Supports up to 16GB of DDR3 memory with a maximum frequency of 1600 MHz. Graphics card can be fitted into the slot PCI Express 3.0 . The connecting hard drives are ready 4 SATA connectors 2, and a total of 10 USB 2.0 connectors , 6 of which are located on the rear panel.

Due to its size, this motherboard is suitable for the construction of compact HTPC or office, as well as home computers for general use. The specialty plate is Processor support from the Council on . Power users will appreciate the company's technology XFast 555 That is used to achieve significant acceleration of RAM, LAN for lower response when playing computer games and USB for example when copying files to flash disk.

Specifications:

Supported Processors:
Model: Intel Ivy Bridge, Intel Sandy Bridge (incl. series K)
Socket: LGA 1155

Chipset
Intel H61

Memory:
Type: DDR3
Slots: 2x DIMM
Frequency: 1066/1333/1600 MHz
Connection mode: Dual-channel
Max. Capacity: 16 GB
Support for Intel XMP (Extreme Memory Profile) 1.3/1.2

Expansion Slots:
1x PCI Express 3.0 x16
2x PCI Express 2.0 x1

Video:
According processor fitted

Audio:
Realtek ALC662
5.1 HD

LAN:
Atheros AR8151
10/100/1000 Mbit/s

Internal interface:
4x SATA II (3 Gbit/s)
2x USB 2.0

External interfaces:
1x D-sub
1x DVI-D
6x USB 2.0
1x RJ-45
3x audio jack
2x PS/2

Power:
1x 24-pin ATX connector
1 x 8-pin ATX 12V connector

Format:
Micro ATX

Dimensions:
24.4 x 19.8 cm

Included accessories:
User Guide
CD with drivers and utilities
I/O cover
2x SATA Cable
