ASUS F2A85-M PRO

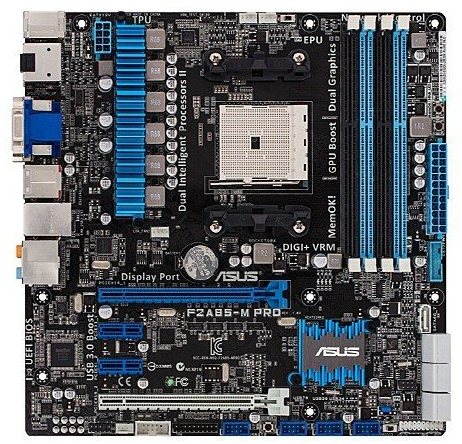

Superbly equipped motherboard Micro ATX reduced format, which create powerful and superbly matchup. PRO Edition offers compared to lower versions DisplayPort output with a resolution of the new generation 4096 x 2160 , More powerful PCI Express 2.0 x16 slots, support for better RAM (up to 2400 MHz at 64 GB), hi-end audio chip Stronger CPU power and last but not least a few special keys for practical functions.
The heart of the board is the highest CPU chipset generation Trinity APU, AMD A85X . With her lower compared chipset get SATA III interface ideal for full use of ultra-fast SSD drives, RAID support, and the ability to connect 3 monitors at the same time.
Speciality plates begin to fully digital power supply DIGI + VRM with a combination of a pair of smart chips EPU (Energy Processing Unit) and TPU (TurboV Processing Unit), continuing buttons immediate access to the BIOS and for the flashing from USB drives and ends with useful features such as Fan Xpert 2 to optimize the speed of rotation of the fan casing, or USB Charger + to 3 times faster recharging of mobile devices via USB ports.
Compatibility with the new operating system Microsoft Windows 8.
Specifications:
Supported Processors:
Series: AMD A/Athlon
Socket: AMD FM2
Chipset
AMD A85X (Hudson D4)
Memory:
Type: DDR3
Slot: 4x DIMM
Max. frequencies (native): 1866 MHz
Max. frequency (overclocking) 2400 MHz
Mode: Dual-channel
Max. Capacity: 64 gigabytes
Expansion Slots:
2 x PCI Express 2.0 x16 (x16 or 2 x8)
2x PCI Express 2.0 x1
Video:
The integrated graphics chip in AMD A Series (Trinity)
Max. Shared Memory: 2048MB
Support AMD Quad-GPU CrossFireX
Support LucidLogix Virtu MVP
Audio:
Realtek ALC892
8 Channel HD
LAN:
Realtek 8111F
10/100/1000 Mbit/s
Internal interface:
7x SATA III (6 Gbit/s)
1x USB 3.0
4x USB 2.0
1x COM
1x S/PDIF output
1x TPM
RAID Support:
RAID 0/1/5/10, JBOD
External interfaces:
1x DisplayPort (output up to 4096 x 2160 @ 60 Hz)
1x HDMI
1x DVI
1x D-sub
1x eSATA III (6 Gbit/s)
2x USB 3.0
4x USB 2.0
1x RJ-45
6x audio jack
1x optical S/PDIF output
1x PS/2 (keyboard/mouse)
Power:
1x 24pin EATX
1x 8pin ATX 12 V
Format:
Micro-ATX
Dimensions:
24.4 x 24.4 cm
Included accessories:
CD with drivers and utilities
Anti-virus software (OEM version)
User Manual
2x SATA III cable
I/O back cover
