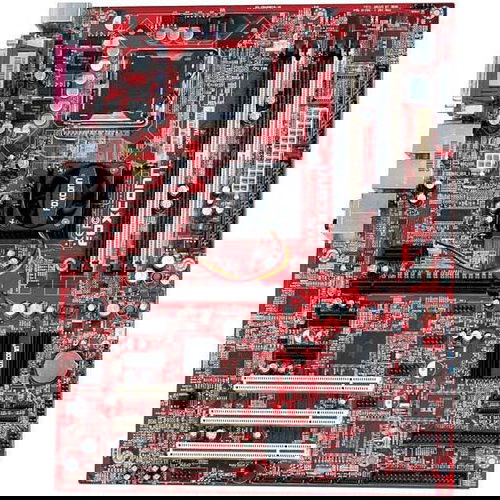

FOXCONN 925XE7AA-8EKRS, 925EX/ICH6R, PCIe x16, DualChannel DDR2, SATA RAID, FW, USB2.0, GLAN, sc775

Advanced and highly equipped motherboard based on Intel 925XE čipsetu / ICH6R.It is designed for Intel Pentium 4 processors and Celeron D to 775th cap SocketIt has dvoukanálovým memory controller with four slots for up to4 GB of DDR2 memory type.It includes two gigabitové network cards, 8-channel sound card and controller with three channels and eight IDE ports, with the support of Serial ATA RAID.For further expansion offers a PCI Express x16, three PCI Express x1 and three PCI slots.To connect external devices is available up to eight USB ports, serial, parallel and three FireWire ports.

The parameters and specifications:

Čipset:
Intel 925XE + ICH6R

CPU:
Socket 775, Intel Pentium 4
Support for Intel processors Prescott and Celeron D
Support for Hyper-Threading
FSB 800 / 1066 MHz

Memories:
Dual controller DDR2 400 / 533
4 slots, max4 GB unbuffered
Aid w / or w / o ECC
Support for Intel Performance Acceleration Technology (PAT)

Controllers:
1 x ATA/100
2 x ATA/133
8 x SATA/150
RAID 0, 1 and Intel Matrix Storage Technology
Support for IDE RAID 0, 1, 1 +0

Sound card:
8-channel High Definition (Realtek)

Network card:
2 x Gigabit Ethernet 10 / 100 / 1000 Mbit / s (Broadcom)

Extension slots:
1 x PCI Express x16
3 x PCI Express x1
3 x PCI

Inputs and outputs:
2 x PS / 2
2 x RJ-45
4 x USB 2nd0
1 x Line-in / line-out / mic (audio)
1 x parallel port (SPP / ECP / EPP)
1 x serial port (16550-compatible UART)
1 x S / PDIF
1 x IEEE-1394 (an additional 2 to the header)

Dimensions:
Format ATX
305 x 245 mm

Warning:Slot Socket 775 requires a professional assembly!The damage caused by improper treatment does not guarantee.We recommend that you get a computer to compile our service department.
