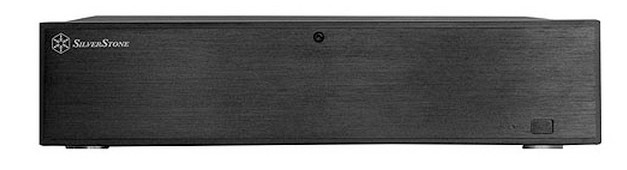

SilverStone ML04B Milo

A simple, yet luxurious design of this HTPC cabinet becomes the perfect complement in the living room for anyone thinking about a home multimedia centre. The aluminium front has a fascinating look and in addition it also performs the function of protection of the lockable door. The small size allows you to place the Milo model series into almost any furniture cabinet or shelf, but despite the compact size you can install up to three 3.5" or five 2.5" discs.

Every computer needs more or less cooling. In this case,up to four 80mm fans can be fed to the airflow. The internal layout of the cabinet allows you to accommodate the micro-ATX format motherboard, the classic ATX  source or offers slots for up to four low-profile cards. The front panel will offer two USB 3.0 ports, and microphone and audio output.

Specifications:

Format box:
HTPC (Home Theater Personal Computer)

Compatibility:
Plate types: Micro-ATX, DTX, Mini-ITX

Position:
1x 5.25" external (compatible with 1x 3.5" or 2x 2.5" drives)
2x 3.5" internal (compatible with 2.5")
1x 2.5" internal

The connectors on the front panel:
2x USB 3.0
1x headphone output
1x microphone in

Cooling system:
4x available slot for 80mm fan (right side)
Top vent with dust filter for CPU cooler

PCI Expansion Slots:
4x for low-profile cards

Other:
Max. CPU cooler height: 70mm
Max. Lamp length: 140mm
Lockable front

Design:
Colour: Black
Material: Aluminium front/plastic front panel/steel body
Dimensions (W x D x H): 440 x 105 x 350mm
Weight: 4kg
