Voltcraft Charge Manager 2024

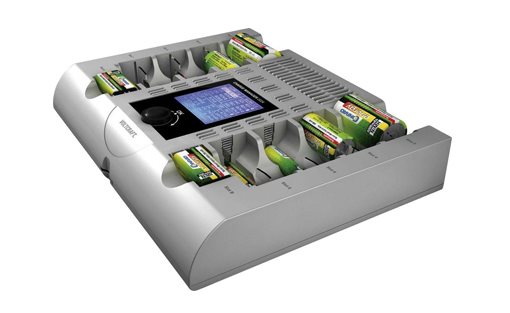

High-End Charging Station From Voltcraft
Charge Manager 2024 can be used both as a battery charger and battery quality diagnostic centre. It is equipped with a graphical display which informs you about the charging progress. The charger maintains optimal charging current.
Software
Charge Manager 2024 offers six different maintenance and restoration programmes for NiMH, NiCd and NiZn batteries. The programmes include test charging cycle, defect detection, discharge and restoration. The programmes help increase the service life and performance of your batteries.

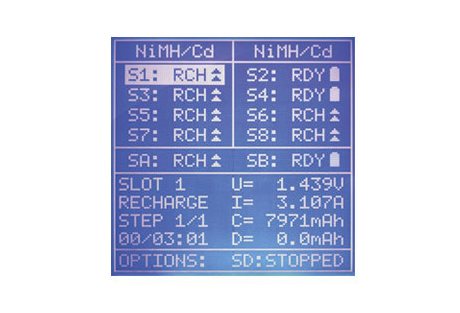

Large LCD display
The large blue backlit LCD display shows all relevant parameters and diagnostics information. One of the most important parameter is a discharge capacity whose balanced value is essential for optimal operation of your batteries. The charger automatically switches to standby mode upon finishing the charging and maintenance cycle.

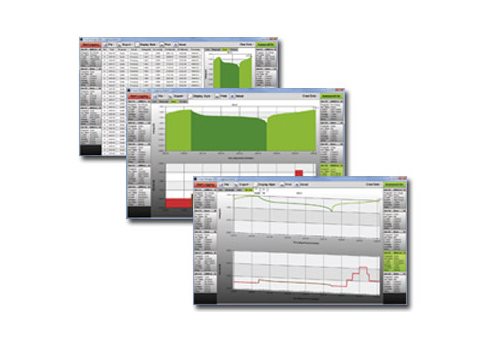

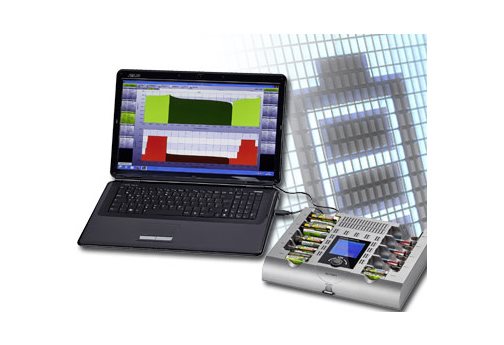

Data management
The built-in USB port and the free downloadable software allow you to manage the charging and diagnostic data from the charger and transfer them to your computer for further analysis or storage. For example, you can record and evaluate the charge and discharge curve. The charger is also compatible with SD cards for added comfort and convenience.
Specifications:
Suitable for battery size:
AAA, AA, small Mono Mono, 9V
Suitable for batteries:
NiCd, NiMH, NiZn
Max. charging current per bay:
3000mA
Typical charging time for AA 2000mAh battery:
45 min
Battery charging current (9V)
38mA
Number of charging bays 9V:
2
Number of charging bays AA:
8
Number of charging bays AAA:
8
Number of charging bays C:
8
Number of charging bays D:
8
Number of charging channels/bays:
10
Specifications
Dimensions and weight
Usage
Features
Package
Specifications can be changed without notice. Images are for illustrative purposes only.
