GIGABYTE B860M EAGLE V2
GIGABYTE B860M EAGLE V2

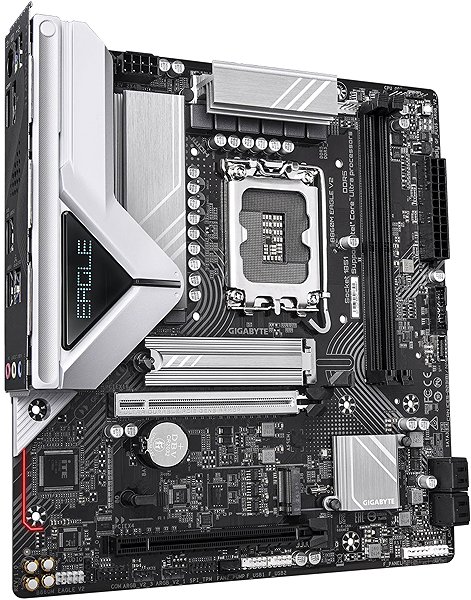

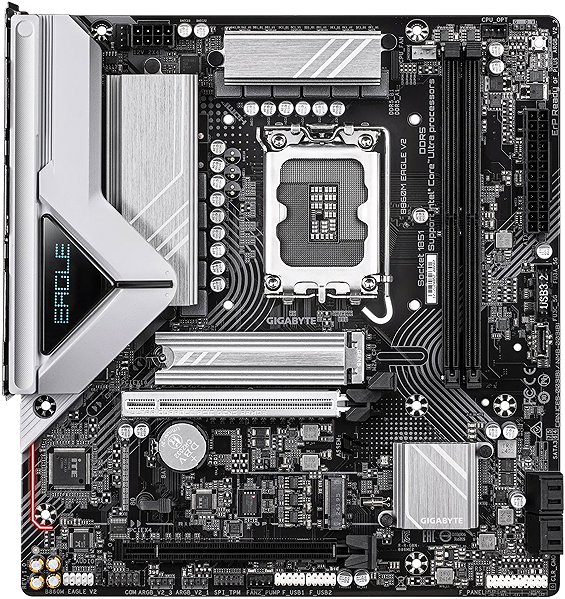

This GIGABYTE motherboard is built on the Intel B860 chipset, which has the Intel 1851 socket for the CPU. As is the standard, it has a sound card made for 8,0 channels. It combines modest dimensions with an adequate number of adaptors for the optimal home computer setup. If you want to build a PC with this model, you will require a compatible mATX (Micro ATX) format PC case.
GIGABYTE B860M EAGLE V2 Motherboard Key Features
- Intel 1851 socket and uses Intel B860 chipset
- GIGABYTE B860M EAGLE V2 size: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 RAM type with DIMM design
- The motherboard can hold 2 × dual-channel memory modules
GIGABYTE B860M EAGLE V2 Motherboard Connectivity
Computer memory is absolutely essential, so this GIGABYTE motherboard has 2 RAM slots. You can use DDR5 type DIMM operating memory. You can hook them up in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 9066 MHz.
GIGABYTE B860M EAGLE V2 Connectivity
The motherboard is made for 2 graphics cards with PCI Express 16x slots. The internal interface also has a total of 2 popular M.2 slots. You'll also be happy to find it has TPM for improved security.

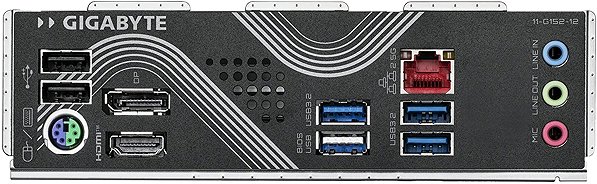

- External interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, HDMI 2.1 and DisplayPort 2.1
- Supported internal interfaces: COM header, S/PDIF header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4 and Serial ATA III
- The motherboard supports RAM modules with a clock speed of up to 9066 MHz
- SATA III: 4 ×
