Dahua KIT/BF4CA-0210B/M0508
Dahua KIT/BF4CA-0210B/M0508

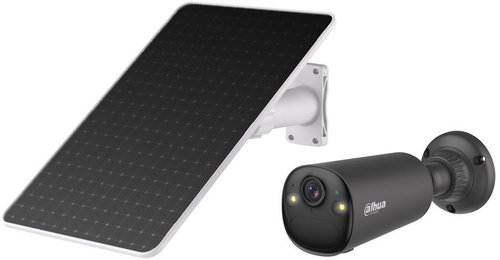

The Dahua KIT/BF4CA-0210B/M0508 IP camera is a modern outdoor solution with a high resolution of 2560 × 1440px and a wide horizontal viewing angle of 122.5°. The device offers hybrid night vision with an infrared illuminator range of up to 15m and warm light up to 20m, ensuring a clear image in all conditions. Integrated algorithms allow for precise detection of people and vehicles, while power is provided by a built-in 32.4Wh battery, which is supplemented by an 8W solar panel.
2560 × 1440px
Maximum resolution
122.5°
Horizontal viewing angle
Bullet
Design
15m
Maximum night vision range
IP66
IP protection rating
Key Features of the Dahua KIT/BF4CA-0210B/M0508 IP Camera
- The device uses an integrated 32.4Wh lithium battery and an 8W solar panel
- The camera supports mobile connection via 4G networks
- The built-in PIR sensor has a range of up to 12m
- The device features a microphone and speaker for two-way audio
- The slot supports MicroSD memory cards up to 512GB
- The system offers an AOV mode for continuous recording with low power consumption
- The camera uses advanced features such as motion tracking and vehicle detection
IP Camera Image Parameters
The device is equipped with a 1/3" CMOS sensor with a resolution of 2560 × 1440px at a frame rate of up to 15 frames per second. A fixed lens with a focal length of 2.1mm and an aperture of F1.6 provides a wide field of view with a horizontal angle of 122.5° and a vertical angle of 66°. For efficient data storage, the camera uses the modern H.265 compression format, which significantly reduces bandwidth requirements.
Night Vision with Hybrid Illumination
The camera uses an advanced night vision system that combines different light sources. The hybrid mode uses two multi-core bodies, which integrate both infrared and warm light. The range in infrared mode reaches 15m, while the warm light reliably illuminates the area up to a distance of 20m. This system captures a colour image even in complete darkness.
Intelligent Detection
The device includes intelligent functions for recognising people and vehicles, which reduces false alarms. The integrated PIR sensor detects motion at a distance of up to 12m at a mounting height of 2.5m in a horizontal position, or 8m at a height of 2m and an incline of 30° from the horizontal. When the area is breached, the camera activates a light and sound alarm, which immediately deters unwanted visitors.
Audio and Two-Way Communication
The hardware includes a built-in microphone and speaker, which enable full two-way audio transmission. This means the user can communicate with people in front of the camera directly through the mobile app. The G.711a, G.711Mu, and PCM standards are used for audio encoding. The integrated speaker also serves to play warning signals.
Recording Storage and Modes
For storing captured recordings, there is a MicroSD memory card slot with support for up to 512GB. The camera offers several recording modes, including recording triggered by motion from the PIR sensor, scheduled recording, or automatic recording. A significant feature is the AOV mode, which allows for continuous 24/7 operation with ultra-low power consumption of only 0.2W, whereas the standard power mode consumes 1.2W.
IP Camera Connectivity and App
The camera offers flexible connection options via dual-band WiFi on the 2.4GHz and 5GHz bands, or via 4G LTE mobile networks. Management and live view monitoring is handled in the DMSS mobile app, which is available for Android and iOS operating systems with localisation for Czech and Slovak. The device supports ONVIF and RTSP protocols.
Technical Specifications
- Image sensor: 1/3" CMOS
- Video compression: H.265
- Battery capacity: 32.4Wh
- Solar panel: 8W
- Card slot: MicroSD
- Weight: 0.37kg
- Connection: WiFi 2.4GHz, WiFi 5GHz, 4G LTE
Package Contents
- Dahua KIT/BF4CA-0210B/M0508 IP camera
- Solar panel
- Mounting material
- Power cable
Specifications
Connection
IP camera protocol
Connectivity
Features
Video
Inputs and outputs
Dimensions
Coverage and durability
Packaging
Dahua Technology Czech s.r.o., Vyskočilova 1566, 140 00 Praha Michle, Česká republika, [email protected], www.dahuasecurity.com
Specifications can be changed without notice. Images are for illustrative purposes only.
