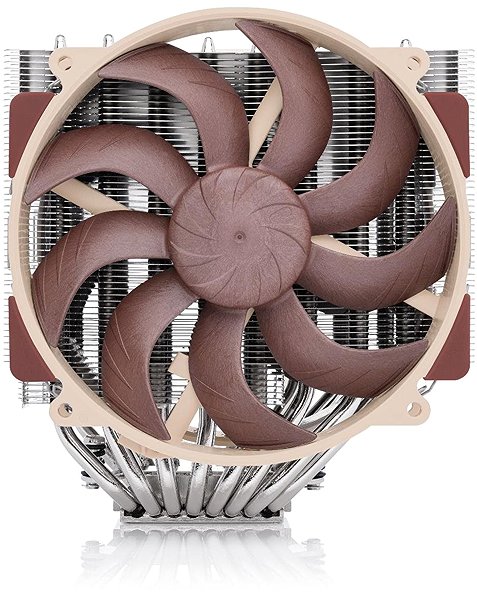

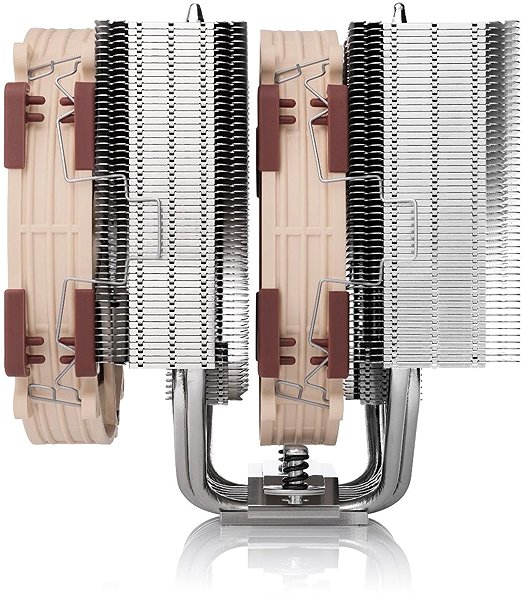

Noctua NH-D15 G2 HBC
Noctua NH-D15 G2 HBC
The NH-D15 G2 HBC is an improved version of the original NH-D15 model, known for its quiet and efficient cooling capabilities. This modern generation brings an enhanced design and performance, making it ideal for demanding users looking for a reliable and effective cooling system. This cooler is compatible with processors like the Intel LGA1700. The NH-D15 G2 HBC is equipped with eight heat pipes and NF-A14x25r G2 fans. By increasing the fin surface area by 20% and optimising the asymmetrical fins, this cooler can efficiently dissipate heat, enabling better performance under higher thermal loads.
Key features of the Noctua NH-D15 G2 HBC processor cooler
- Improved design for better cooling performance
- Eight-heat-pipe design with higher thermal capacity
- Dual NF-A14x25r G2 fans for maximum performance and minimum noise
- Compatibility with a wide range of processors and motherboards
- Offset mounting for improved clearance and PCIe slot compatibility
- SecuFirm2+™ mounting system for easy installation and reliability
- NT-H2 thermal paste ensures maximum cooling efficiency
Compatibility and optimisation
Thanks to the versatile SecuFirm2+™ mounting system, the NH-D15 G2 HBC is compatible with a wide range of processors and motherboards. The mounting system ensures easy installation and compatibility with processors such as Intel LGA1700, AM5 and other platforms. The offset design also provides more space for PCIe slots.
Quiet operation and maximum performance
The dual NF-A14x25r G2 fans are equipped with PWM technology and offer a wide speed range from 300RPM to 1500RPM. This system enables you to set optimal performance while maintaining quiet operation. The cooler is also equipped with two Low-Noise Adaptors (L.N.A.) for even quieter operation.
Fan diameter:
140mm
Maximum speed:
1500RPM
Airflow:
155.6 m³/h
Speed control:
Automatic speed control
Cooling type:
Air
Maximum noise level:
24.8dB
Bearing type:
Self-stabilising Oil-pressure Bearing (SSO2)
Specifications
Backlight
Fan speed
Technical specification
Socket
Heatpipe
Dimensions
Weight
