TP-Link SG2016P, Omada
TP-Link SG2016P, Omada

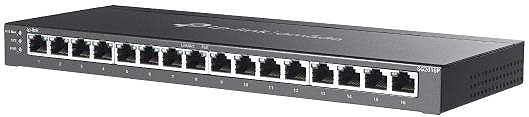

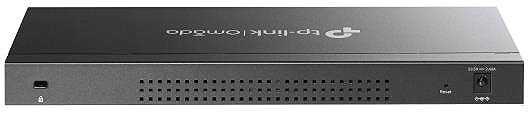

The TP-Link SG2016P managed switch is designed for managing and expanding your network infrastructure in both home and business environments. It features a total of 16 gigabit ports, eight of which support Power over Ethernet. With a total PoE budget of 120W, you can easily connect devices such as IP cameras, access points, or VoIP phones. Thanks to its integration with the Omada SDN platform, you get centralised management, monitoring, and configuration of your network from a single point, even remotely via the cloud.
Key features of the TP-Link SG2016P managed switch
- Designed for network management in homes, businesses, and camera systems
- Equipped with 16 gigabit RJ-45 ports
- Eight ports with PoE+ (802.3af/at) support
- Total PoE budget of 120W, with a maximum of 30W per port
- Switching capacity of 32Gbps and a packet forwarding rate of 23.81Mpps
- Centralised management via the Omada SDN platform
- Support for L2/L3 features including static routing, QoS, and LACP
- PoE Auto Recovery feature for automatically rebooting unresponsive devices
- Network security with 802.1X authentication and ACL
- Metal body with a desktop design
- Operating temperature range of 0°C to 40°C
- Dimensions: 25.4 × 286 × 111.7mm (H×W×D)
- Weight: 940g
- IGMP, DHCP, and MLD snooping support
- IPv6 protocol support
Flexible power and efficient management
The switch is equipped with eight PoE+ ports that comply with 802.3af/at standards. The total power budget of 120W, with up to 30W per port, is designed to power network devices. The PoE Auto Recovery feature automatically detects and reboots connected PoE devices if they become unresponsive. Full integration into the Omada Software Defined Networking (SDN) platform enables centralised management of the entire network from a single interface. You can manage access points, switches, and gateways, either locally or remotely via the cloud.
Features for network optimisation
The TP-Link SG2016P includes L2 and L3 features for optimising network performance and security. Support for up to 4096 VLANs enables logical network segmentation, while QoS (Quality of Service) prioritises data traffic for applications like voice or video. Link Aggregation (LACP) increases throughput by combining multiple ports. Security is enhanced by 802.1X authentication and an Access Control List (ACL). Static routing is available for routing internal traffic.
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Routing
Features
Speed
Dimensions
Material
Operating temperature
Weight
Power outlet type
